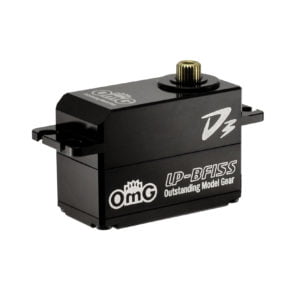

D3-LP-BF15S 1:10 Drifting RC Car Low Profile Full Metal Brushless Digital Servo
| Item No. | D3-LP-BF15S | Part No. | D3-LP-BF15S |
| Type | Digital | Operating Voltage Range | 6-7.4-8.4Volts DC |
| Bearing Type | Dual Ball Bearings | Speed(S/60 degree at 6.0V/7.4V/8.4V) | 0.068/0.055/0.048 |
| Torque oz/in.(6.0V/7.4V/8.4V) | 170/182/195 | Torque kg./cm.(6.0V/7.4V/8.4V) | 12.3/13.1/14.1 |
| Size in inches | 1.59X0.79X1.13 | Size in Millimetes | 40.8X20X28.8 |
| Weight (oz.) | 2.29 | Weight (g.) | 65g |
| Motor Type | Brushless motor | Control System | 1500 u sec Neutral |
| Required Pulse | 3-5V | Operating Temperature range(F) | 14 – 122 degree |
| Operating Temperature range | -10- 50 degree centigrade | Idle Current(6.0V/7.4V/8.4V) | 4mA/5mA |
| No load Running Current(6.0V/ 7.4V/8.4V) | 300mA/400mA | Stall Current(6.0V/7.4V/8.4V) | 3200mA/3900mA |
| Dead Band Width | 2us | Potentiomete Type | Rotating (Max.220) |
| Connector wire Length | 11.8 in. / 300 mm. OMG wire | Connector Wire Gauge | 22 AWG |
| Connector Type | JR | Gear Type | Titanium gears |
| Frequency | 330Hz | Shaft | 5.85mm 25T |
