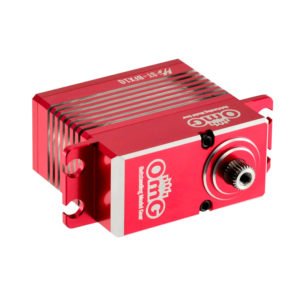

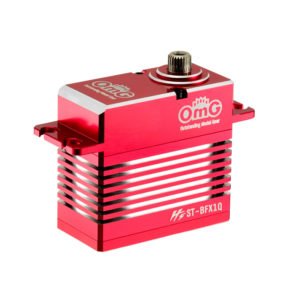

Class 700 Helicopter Tail Standard Full Metal Brushless Digital Servo
| Item No. | H5-ST-BFX1Q | Part No. | H5-ST-BFx1Q |
| Type | Digital | Operating Voltage Range | 6V- 7.4V-8.4Volts DC |
| Bearing Type | Dual Ball Bearings | Speed(S/60 degree at 6V/7.4V/8.4V) | 0.041/0.038/0.033 |
| Torque oz/in.(6V/7.4V/8.4V) | 110/130/150 | Torque kg./cm.(6V/7.4V/8.4V) | 8/9.5/11 |
| Size in inches | 1.58X0.80X1.55 | Size in Millimetes | 40X20X38 |
| Weight (oz.) | 2.53 | Weight (g.) | 72g |
| Motor Type | Brushless motor | Control System | 1500 u sec Neutral |
| Required Pulse | 3-5V | Operating Temperature range(F) | 14 – 122degree |
| Operating Temperature range | -10- 50 degree centigrade | Idle Current(6V/7.4V/8.4V) | 5mA/5mA |
| No load Running Current(6V/7.4V/ 8.4V) | 180mA/220mA | Stall Current(6V/7.4V/8.4V) | 3800mA/4700mA |
| Dead Band Width | 2us | Potentiomete Type | Rotating (Max.220) |
| Connector wire Length | 11.8 in./300mm | Connector Wire Gauge | 22AWG |
| Connector Type | JR | Gear Type | Stainless stell gear |
| Frequency | 330Hz | Shaft | 5.85mm 25T |
