Beschreibung
Specifications
- Telemetry Function: Mikado VBar；Futaba S.Bus2；MSH iKon；Brain and etc.

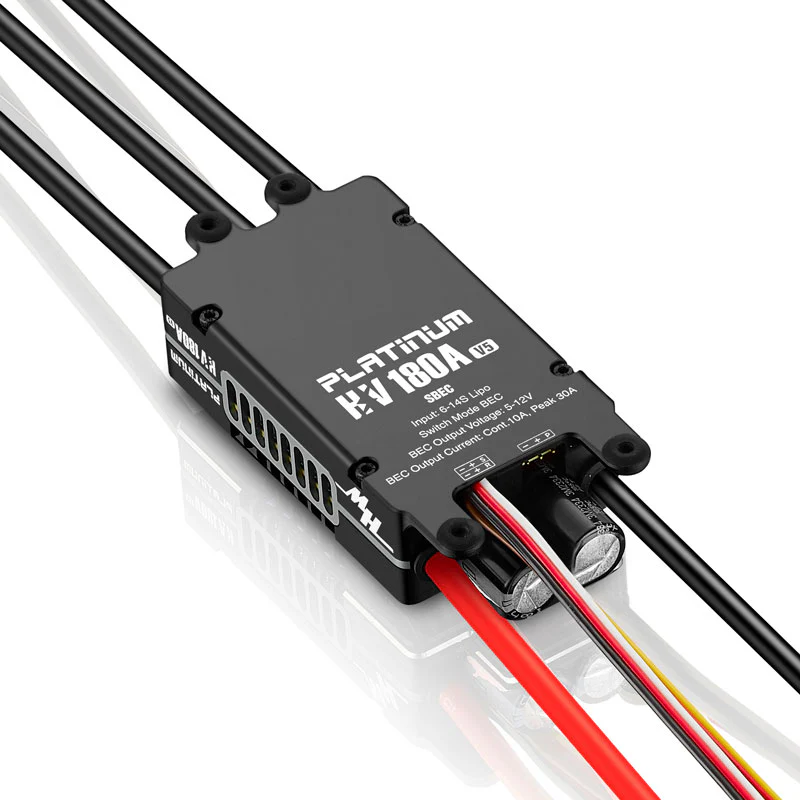

| Model | 180A HV |
| p/n | 30209103 |
| Application | 550-700 class electric helicopter (main rotor length 550-700mm),or fixed-wing |
| Input (V) Lipo | 6-14S |
| Cont./Peak Current (10s) | 180A/260A |
| BEC (Switch mode) | 5-12V adjustable (step: 0.1V) 10A/30A Cont./Peak |
| Separate Programming Port | Tunalyzer / LCD Program Box / OTA Programmer |
| Input wires | Red-10AWG-150mm Black-10AWG-150mm |
| Output wires | Black-10AWG-100mm |
| Output connector | Gold connector |
| Mounting-holes | M3, 16.5* 90x34mm |
| size | 100.6 x 45.5 x 26.1 mm |
| Weight | 250.6g (Without Fan) |
